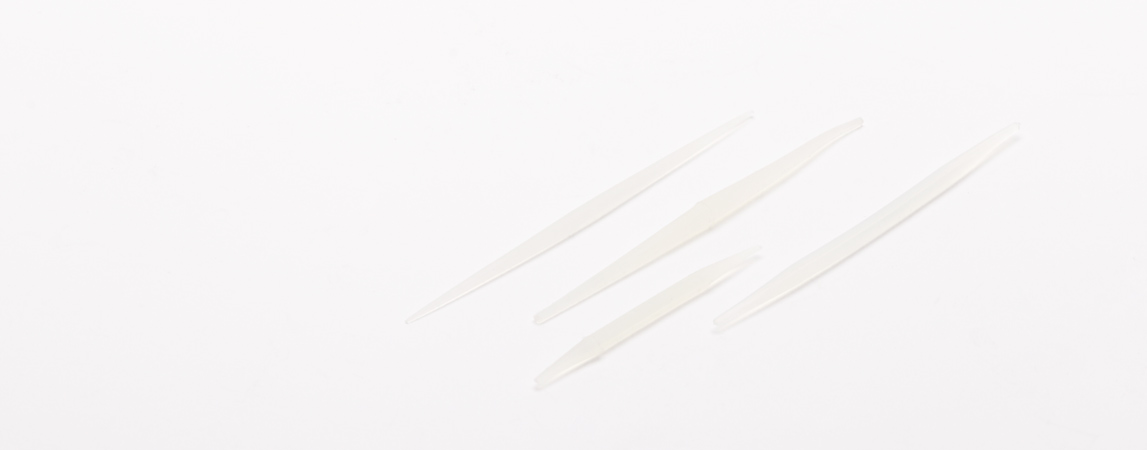

SMT/EMT Series - Silicone & EPDM Mousetail Plugs
Typical Applications:
- Mousetail plugs are typically used as a plug for extremely small holes, especially in electronic components.
Product Description:
Our Silicone Mousetail (SMT) line is the ideal solution when masking small openings, threaded holes, and small irregularly contoured features. Their thin profiles make them extremely stretchy, allowing them to contract and fit into different size holes. Our high temperature Silicone is specially formulated to ensure reusability and reliability during masking.
The EMT Mousetail plugs conform to the same sizes except they are made of EPDM rubber.
| Part Number | COLOR | MJD - IN | MND - IN | L - IN | MJD - MM | MND - MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.079 (2.0mm) Major Dia. X 0."
EMT 0079
|
BLACK | 0.079 | 0.022 | 1.332 | 2.0 | 0.6 | 33.8 | 1000 |
$116.92/BAG
|
||
|
0.079 Major Dia. X 0.022" Min"
SMT 0079
|
CLEAR | 0.079 | 0.022 | 1.332 | 2.0 | 0.6 | 33.8 | 1000 |
$154.75/BAG
|
||
|
0.080 (2.0mm) Major Dia. X 0."
EMT 0080
|
BLACK | 0.080 | 0.023 | 2.083 | 2.0 | 0.6 | 52.9 | 1000 |
$118.93/BAG
|
||
|
0.080 Major Dia. X 0.023" Min"
SMT 0080
|
CLEAR | 0.080 | 0.023 | 2.083 | 2.0 | 0.6 | 52.9 | 1000 |
$162.32/BAG
|
||
|
0.083 Major Dia. X 0.031" Min"
SMT 0083
|
CLEAR | 0.083 | 0.031 | 1.928 | 2.1 | 0.8 | 49.0 | 1000 |
$163.41/BAG
|
||
|
0.100 (2.5mm) Major Dia. X 0."
EMT 0100
|
BLACK | 0.100 | 0.030 | 2.080 | 2.5 | 0.8 | 52.8 | 1000 |
$130.07/BAG
|
||
|
0.100 Major Dia. X 0.030" Min"
SMT 0100
|
CLEAR | 0.100 | 0.030 | 2.080 | 2.5 | 0.8 | 52.8 | 1000 |
$166.75/BAG
|
||
|
0.083 (2.1mm) Major Dia. X 0."
EMT 0083
|
COLOR | 0.083 | 0.031 | 1.928 | 2.1 | 0.8 | 49.0 | 1000 |
$125.94/BAG
|
