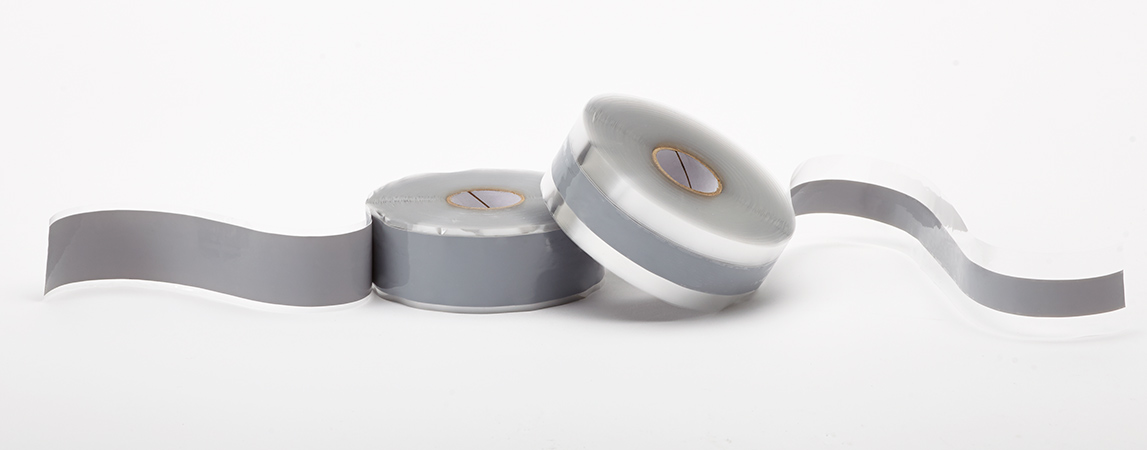

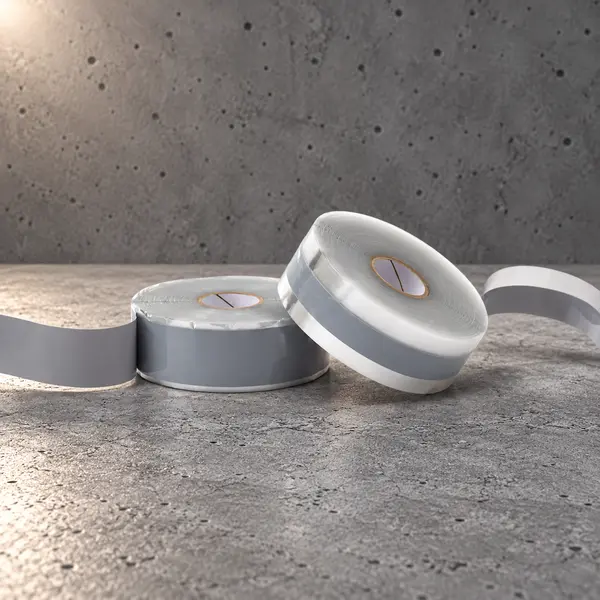

S10 Series - Silicone Fusing Tape
- Maximum Temperature: 600°F
- Excellent Insulation Value up to 12,000 Volts
- No Adhesive; Only Sticks to Itself
- Waterproof
- Form Fitting
Product Description:
Our high temperature silicone self-fusing tape line (S10/S20/S30) has no adhesive, leaves no residue, and fuses to itself in 24 hours to form a permanent watertight seal. It is ideal for high temperature applications such as electrical insulation, splicing, and cable harnesses.
Specifications:
- Temperature Range (F) Continuous: -65 to 500°F;
- Intermittent: -85 to 600°F
- Tensile Strength (PSI) 700 PSI Minimum (ASTM D-412)
- Elongation (%) 300
- Tear Resistance (PSI) 85
- Durometer (Shore A) 50 (Room Cured)
- Dielectric Strength (VPM) 200 - 400
- Dielectric Constant (1 KHz) 2.95
- Dissipation Factor (1KHz) <.0004''
- Insulation Resistance (ohms/cm) 3 X 10^14
- Moisture Absorption 3% Max. by weight
- Government Specifications Meets or Exceeds A-A-5916 (Supersedes MILS I-46852C)
| Part Number | COLOR | Length - YDS | Standard Width - IN | Width - IN | Length - M | Width - MM | Case Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|
|
12.7mm Gray Silicone Self-Adhe
S10-00127-Y
|
GREY | 18 | 1/2 in | 0.500 | 16 | 12.7 | 8 |
$21.01/ROL
|
||
|
19.1mm Gray Silicone Self-Adhe
S10-00191-Y
|
GREY | 18 | 3/4 in | 0.750 | 16 | 19.1 | 8 |
$26.65/ROL
|
||
|
25.4mm Gray Silicone Self-Adhe
S10-00254-Y
|
GREY | 18 | 1 in | 1.000 | 16 | 25.4 | 8 |
$28.70/ROL
|
