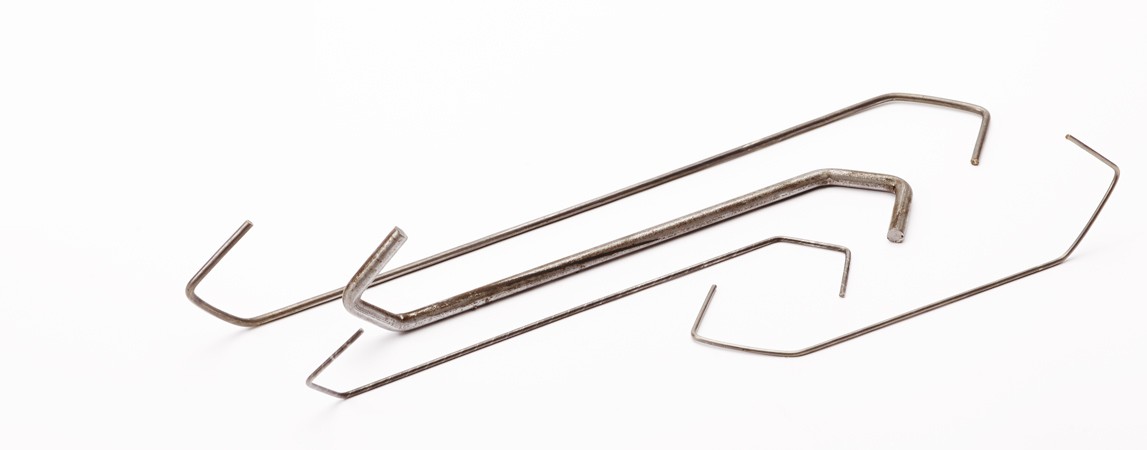

HV90 Series - V-Hooks 90 Degree Bend
- V-Hook Geometry is Extremely Stable Under Loads (as compared to other hook geometries)
- 90° Bend Allows for Specific Hanging Orientation
- NOTE: The recommended safe load limits were compiled under static load conditions in a laboratory fully accredited by the American Association for Laboratory accreditation, conforming to ISO Guide 25. Although all load limits incorporate a safety factor, many factors will affect the actual dynamic load capacity of a hook. Such factors include sudden change in line speed, vibration in the conveyor, or in the case of suspension from two hooks, a shift in the center of gravity caused by an incline or stretching along curves in the conveyor. This product should be tested to determine the suitability for its intended use.
- Please call your EPSI representative for further details.
========================================================================
| Part Number | Leg 1 - IN | Leg 2 - IN | Length - IN | Wire Diameter - IN | Leg 1 - MM | Leg 2 - MM | Length - MM | Wire Diameter - MM | Box Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.000 (75.0mm) L X 0.060" (1."
HV90 07515-2121
|
0.810 | 0.810 | 3.000 | 0.060 | 21.0 | 21.0 | 75.0 | 1.5 | 2500 |
$100.43/BOX
|
||
|
3.000 (75.0mm) L X 0.080" (2."
HV90 07520-2121
|
0.810 | 0.810 | 3.000 | 0.080 | 21.0 | 21.0 | 75.0 | 2.0 | 2500 |
$109.54/BOX
|
||
|
4.000 (100.0mm) L X 0.060" (1"
HV90 10015-2121
|
0.810 | 0.810 | 4.000 | 0.060 | 21.0 | 21.0 | 100.0 | 1.5 | 2500 |
$111.66/BOX
|
||
|
4.000 (100.0mm) L X 0.080" (2"
HV90 10020-2121
|
0.810 | 0.810 | 4.000 | 0.080 | 21.0 | 21.0 | 100.0 | 2.0 | 2500 |
$115.31/BOX
|
||
|
4.000 (100.0mm) L X 0.120" (3"
HV90 10030-2121
|
1.000 | 1.000 | 4.000 | 0.120 | 25.0 | 25.0 | 100.0 | 3.0 | 1000 |
$72.83/BOX
|
||
|
6.000 (150.0mm) L X 0.060" (1"
HV90 15015-2525
|
1.000 | 1.000 | 6.000 | 0.060 | 25.0 | 25.0 | 150.0 | 1.5 | 2500 |
$161.12/BOX
|
||
|
6.000 (150.0mm) L X 0.080" (2"
HV90 15020-2525
|
1.000 | 1.000 | 6.000 | 0.080 | 25.0 | 25.0 | 150.0 | 2.0 | 2500 |
$184.17/BOX
|
||
|
6.000 (150.0mm) L X 0.120" (3"
HV90 15030-2525
|
1.000 | 1.000 | 6.000 | 0.120 | 25.0 | 25.0 | 150.0 | 3.0 | 1000 |
$109.60/BOX
|
||
|
6.000 (150.0mm) L X 0.180" (4"
HV90 15045-2525
|
1.000 | 1.000 | 6.000 | 0.180 | 25.0 | 25.0 | 150.0 | 4.5 | 500 |
$103.16/BOX
|
||
|
6.000 (150.0mm) L X 0.250" (6"
HV90 15060-2525
|
1.000 | 1.000 | 6.000 | 0.250 | 25.0 | 25.0 | 150.0 | 6.0 | 250 |
$109.10/BOX
|
||
|
8.000 (200.0mm) L X 0.080" (2"
HV90 20020-2525
|
1.000 | 1.000 | 8.000 | 0.080 | 25.0 | 25.0 | 200.0 | 2.0 | 2500 |
$236.38/BOX
|
||
|
8.000 (200.0mm) L X 0.120" (3"
HV90 20030-2525
|
1.000 | 1.000 | 8.000 | 0.120 | 25.0 | 25.0 | 200.0 | 3.0 | 1000 |
$137.63/BOX
|
||
|
8.000 (200.0mm) L X 0.250" (6"
HV90 20060-2525
|
1.000 | 1.000 | 8.000 | 0.250 | 25.0 | 25.0 | 200.0 | 6.0 | 500 |
$130.31/BOX
|
||
|
10.000 (250.0mm) L X 0.120" ("
HV90 25030-2525
|
1.000 | 1.000 | 10.000 | 0.120 | 25.0 | 25.0 | 250.0 | 3.0 | 1000 |
$172.11/BOX
|
||
|
12.000 (300.0mm) L X 0.120" ("
HV90 30030-2525
|
1.000 | 1.000 | 12.000 | 0.120 | 25.0 | 25.0 | 300.0 | 3.0 | 500 |
$103.20/BOX
|
||
|
12.000 (300.0mm) L X 0.180" ("
HV90 30045-2525
|
1.000 | 1.000 | 12.000 | 0.180 | 25.0 | 25.0 | 300.0 | 4.5 | 250 |
$88.00/BOX
|
||
|
12.000 (300.0mm) L X 0.250" ("
HV90 30060-2525
|
1.000 | 1.000 | 12.000 | 0.250 | 25.0 | 25.0 | 300.0 | 6.0 | 250 |
$165.53/BOX
|
||
|
18.000 (450.0mm) L X 0.080" ("
HV90 45020-2525
|
1.000 | 1.000 | 18.000 | 0.080 | 25.0 | 25.0 | 450.0 | 2.0 | 1000 |
$232.18/BOX
|
||
|
24.000 (600.0mm) L X 0.120" ("
HV90 60030-2525
|
1.000 | 1.000 | 24.000 | 0.120 | 25.0 | 25.0 | 600.0 | 3.0 | 500 |
$269.63/BOX
|
||
|
30.000 (750.0mm) L X 0.120" ("
HV90 75030-2525
|
1.000 | 1.000 | 30.000 | 0.120 | 25.0 | 25.0 | 750.0 | 3.0 | 250 |
$161.18/BOX
|
