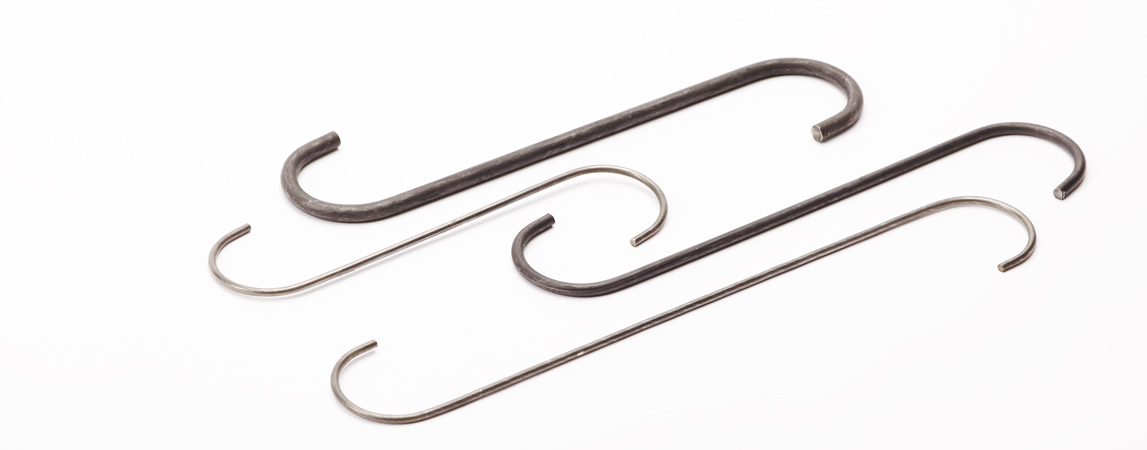

HS Series - S-Hooks
- Can be Used in Combination to Daisy Chain Multiple Items Together
- Ideal for Wider Parts or Multiple Styles of Parts with Varying Thicknesses -- NOTE: The recommended safe load limits were compiled under static load conditions in a laboratory fully accredited by the American Association for Laboratory Accreditation, conforming to ISO Guide 25. Although all load limits incorporate a safety factor, many factors will affect the actual dynamic load capacity of a hook. Such factors include sudden change in line speed, vibration in the conveyor, or in the case of suspension from two hooks, a shift in the center of gravity caused by an incline or stretching along curves in the conveyor. This product should be tested to determine the suitability for its intended use.
- Please call your EPSI representative for further details.
========================================================================
| Part Number | Diameter - IN | Length - IN | Diameter - MM | Bowl Diameter - IN | Bowl Diameter - MM | Length - MM | Box Qty | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|
|
3.000 (75.0mm) L X 0.060" (1."
HS 07515-32
|
0.060 | 3.000 | 1.5 | 1.250 | 32.0 | 75.0 | 2500 |
$89.98/BOX
|
||
|
3.000 (75.0mm) L X 0.080" (2."
HS 07520-32
|
$98.14/BOX
|
|||||||||
|
4.000 (100.0mm) L X 0.060" (1"
HS 10015-32
|
0.060 | 4.000 | 1.5 | 1.250 | 32.0 | 100.0 | 2500 |
$87.58/BOX
|
||
|
4.000 (100.0mm) L X 0.080" (2"
HS 10020-32
|
0.080 | 4.000 | 2.0 | 1.250 | 32.0 | 100.0 | 2500 |
$108.85/BOX
|
||
|
4.000 (100.0mm) L X 0.120" (3"
HS 10030-32
|
0.120 | 4.000 | 3.0 | 1.250 | 32.0 | 100.0 | 1000 |
$64.49/BOX
|
||
|
6.000 (100.0mm) L X 0.060" (1"
HS 15015-38
|
0.060 | 6.000 | 1.5 | 1.500 | 38.0 | 150 | 2500 |
$151.58/BOX
|
||
|
6.000 (150.0mm) L X 0.080" (2"
HS 15020-38
|
0.080 | 6.000 | 2.0 | 1.500 | 38.0 | 150.0 | 2500 |
$166.68/BOX
|
||
|
6.000 (150.0mm) L X 0.120" (3"
HS 15030-38
|
0.120 | 6.000 | 3.0 | 1.500 | 38.0 | 150.0 | 1000 |
$98.92/BOX
|
||
|
6.000 (150.0mm) L X 0.180" (4"
HS 15045-38
|
0.180 | 6.000 | 4.5 | 1.500 | 38.0 | 150.0 | 500 |
$102.65/BOX
|
||
|
6.000 (150.0mm) L X 0.250" (6"
HS 15060-38
|
0.250 | 6.000 | 6.0 | 1.500 | 38.0 | 150.0 | 250 |
$115.08/BOX
|
||
|
8.000 (200.0mm) L X 0.080" (2"
HS 20020-38
|
0.080 | 8.000 | 2.0 | 1.500 | 38.0 | 200.0 | 2500 |
$222.23/BOX
|
||
|
8.000 (200.0mm) L X 0.120" (3"
HS 20030-38
|
0.120 | 8.000 | 3.0 | 1.500 | 38.0 | 200.0 | 1000 |
$129.23/BOX
|
||
|
10.000 (250.0mm) L X 0.080" ("
HS 25020-38
|
0.080 | 10.0 | 2.0 | 1.500 | 38.0 | 250.0 | 2500 |
$169.79/BOX
|
||
|
10.000 (250.0mm) L X 0.120" ("
HS 25030-38
|
0.120 | 10.000 | 3.0 | 1.500 | 38.0 | 250.0 | 1000 |
$171.13/BOX
|
||
|
10.000 (250.0mm) L X 0.250" ("
HS 25060-38
|
0.250 | 10.000 | 6.0 | 1.5000 | 38.0 | 250.0 | 250 |
$131.02/BOX
|
||
|
12.000 (300.0mm) L X 0.080" ("
HS 30020-38
|
0.080 | 12.000 | 2.0 | 1.500 | 38.0 | 300.0 | 1000 |
$135.76/BOX
|
||
|
12.000 (300.0mm) L X 0.120" ("
HS 30030-38
|
0.120 | 12.000 | 3.0 | 1.500 | 38.0 | 300.0 | 500 |
$103.27/BOX
|
||
|
12.000 (300.0mm) L X 0.180" ("
HS 30045-38
|
0.180 | 12.0 | 4.5 | 1.5 | 38.0 | 300.0 | 250 |
$87.09/BOX
|
||
|
12.000 (300.0mm) L X 0.250" ("
HS 30060-38
|
0.250 | 12.000 | 6.0 | 1.500 | 38.0 | 300.0 | 250 |
$164.69/BOX
|
||
|
18.000 (450.0mm) L X 0.180" ("
HS 45045-38
|
0.180 | 18.000 | 4.5 | 1.500 | 38.0 | 450.0 | 250 |
$120.29/BOX
|
||
|
18.000 (450.0mm) L X 0.250" ("
HS 45060-38
|
0.250 | 18.000 | 6.0 | 1.500 | 38.0 | 450.0 | 250 |
$208.04/BOX
|
