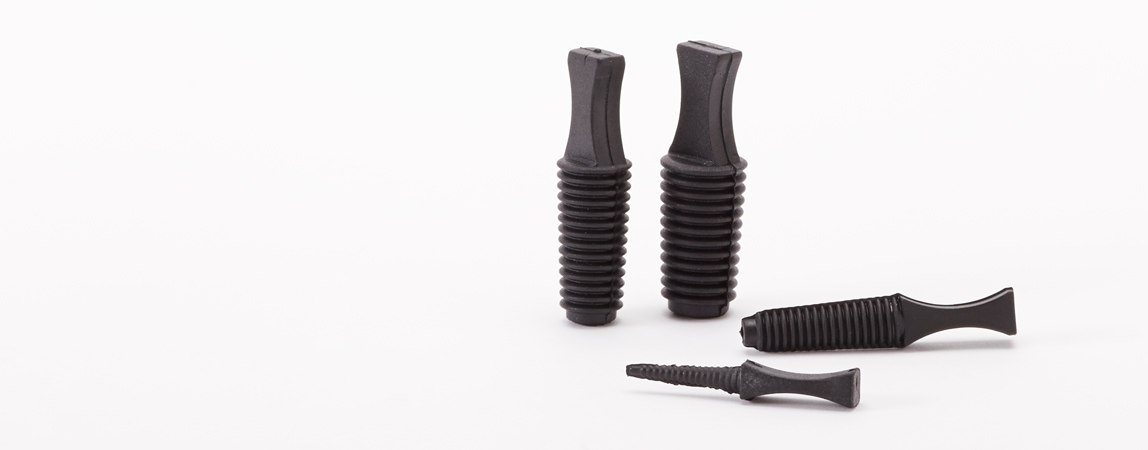

FLPE Series - EPDM Flangless Plugs
EPSI's EPDM Flangeless plug (FLPE) product line is an economical alternative to the Silicone Flangeless Plug (FLPS) line. Made of a rugged blend of our Hight temperature EPDM the FLPE has excellent sealing characteristics, chemical resistance and reusability.
Typical Applications:
- Used as a plug for threaded holes, including the top thread.
Helpful Hints:
- Silicone Flangeless Plugs are designed to be inserted via direct pressure. EPSI does not recommend threading these plugs into place, as threading may cause damage to the plug and difficulty during removal.
- Due to the low tear resistance of Silicone, do not use tools (such as pliers) to remove plugs.
Product Description:
EPSI's EPDM Flangeless plug (FLPE) product line is an economical alternative to the Silicone Flangeless Plug (FLPS) line. Made of a rugged blend of our Hight temperature EPDM the FLPE has excellent sealing characteristics, chemical resistance and reusability. EPSI’s Flangeless Plug (FLPS or FLPE) product line is specifically designed to mask threaded holes, including the top thread, without masking the surrounding area. The tapered ribs and hollow core allow for many different size holes to be masked, regardless of the thread pitch. Imitation plugs have rounded ribs that do not offer the same degree of protection as EPSI’s FLPS line. Made of a rugged blend of our High Temperature Silicone the FLPS has excellent sealing characteristics and reusability.
| Part Number | COLOR | MJD - IN | MND - IN | MPD - IN | L - IN | MJD - MM | MND - MM | MPD - MM | L - MM | PCS/BAG | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.157" Major Dia. X 0.079" Minor Dia. X 0.748
FLPE 00402-B
|
BLACK | 0.157 | 0.079 | 0.118 | 0.748 | 4.0 | 2.0 | 3.0 | 19.0 | 500 |
$47.10/BAG
|
||
|
0.236 Major Dia. X 0.157" Min"
FLPE 00604-B
|
BLACK | 0.236 | 0.157 | 0.197 | 1.000 | 6.0 | 4.0 | 5.0 | 25.4 | 250 |
$37.47/BAG
|
||
|
0.315 Major Dia. X 0.236" Min"
FLPE 00806-B
|
BLACK | 0.315 | 0.236 | 0.276 | 1.000 | 8.0 | 6.0 | 7.0 | 25.4 | 250 |
$42.77/BAG
|
||
|
0.394 Major Dia. X 0.315" Min"
FLPE 01008-B
|
BLACK | 0.394 | 0.315 | 0.355 | 1.000 | 10.0 | 8.0 | 9.0 | 25.4 | 250 |
$53.32/BAG
|
||
|
0.472 Major Dia. X 0.394" Min"
FLPE 01210-B
|
BLACK | 0.472 | 0.394 | 0.433 | 1.000 | 12.0 | 10.0 | 11.0 | 25.4 | 250 |
$62.70/BAG
|
||
|
0.551 Major Dia. X 0.472" Min"
FLPE 01412-B
|
BLACK | 0.551 | 0.472 | 0.512 | 1.000 | 14.0 | 12.0 | 13.0 | 25.4 | 250 |
$68.16/BAG
|
||
|
0.630 Major Dia. X 0.551" Min"
FLPE 01614-B
|
BLACK | 0.630 | 0.551 | 0.591 | 1.000 | 16.0 | 14.0 | 15.0 | 25.4 | 250 |
$88.70/BAG
|
||
|
CLEAR SILICONE
FLPE 01816-B
|
BLACK | 0.709 | 0.630 | 0.670 | 1.000 | 18.0 | 16.0 | 17.0 | 25.4 | 250 |
$89.44/BAG
|
||
|
0.787 Major Dia. X 0.709" Min"
FLPE 02018-B
|
BLACK | 0.787 | 0.709 | 0.748 | 1.000 | 20.0 | 18.0 | 19.0 | 25.4 | 100 |
$53.93/BAG
|
||
|
0.886 Major Dia. X 0.787" Min"
FLPE 02220-B
|
BLACK | 0.886 | 0.787 | 0.837 | 1.000 | 22.5 | 20.0 | 21.2 | 25.4 | 100 |
$61.56/BAG
|
||
|
0.945 Major Dia. X 0.886" Min"
FLPE 02422-B
|
BLACK | 0.945 | 0.886 | 0.916 | 1.000 | 24.0 | 22.5 | 23.3 | 25.4 | 100 |
$71.53/BAG
|
||
|
1.024 Major Dia. X 0.945" Min"
FLPE 02624-B
|
BLACK | 1.024 | 0.945 | 0.985 | 1.000 | 26.0 | 24.0 | 25.0 | 25.4 | 100 |
$87.71/BAG
|
||
|
1.102 Major Dia. X 1.024" Min"
FLPE 02826-B
|
BLACK | 1.102 | 1.024 | 1.063 | 1.000 | 28.0 | 26.0 | 27.0 | 25.4 | 100 |
$98.45/BAG
|
